Self Priming Sewage Drain Diaphragm Pump

FOB Reference Price:Get Latest Price
$465.00 - $600.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Haoyang
Model Number:
HY25-AL
Structure:
Diaphragm Pump
Usage:
Water treament ,Ceramic, Plating,etc.
Application:
Oil , Chemical , Coating, etc
Power:
Pneumatic
Fuel:
air operated
Pressure:
Low Pressure
OEM:
Applicable
Certificate:
CE Certificate
Advantages:
Explosion-proof , zero leak , stall-free ,etc
Max head:
84m
Max suction lift:
Dry 4m ;wet 8m
Max flow rate:
157L/min
Standard or Nonstandard:
Standard
Theory:
Reciprocating Pump
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton packing with foam
Port
Shanghai
Lead Time :
Shipped in 7 days after payment

The  Self Priming Sewage Drain Diaphragm Pump



Product Description



        Product Features





Pneumatic Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.

Select guide



        Selection Guide

The HY AODD pumps offers many materials of construction,such as aluminum, stainless steel ,pp, pvdf ,etc. All AODD pumps are available with imported diaphragm,ball and ball seat materials offering long product life and reduced maintenance.OEM/ODM are available ,products can be customized according to your requirements.





Application



        Application

 HY double diaphragm pumps are very resistant to abrasion with good priming capabilities.They can handle the majority types of sludge and sewage.





HY air-Operated Diaphragm pumps are also uniquely suited to filter-press applications







     Some Benifits

  • Can run dry
  • Self priming
  • Few parts--easy to maintain
  • Compact
  • Reliable
  • Long service time
  • Sensors and stroke counters are available



HY AODD Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.
Installation



        Installation

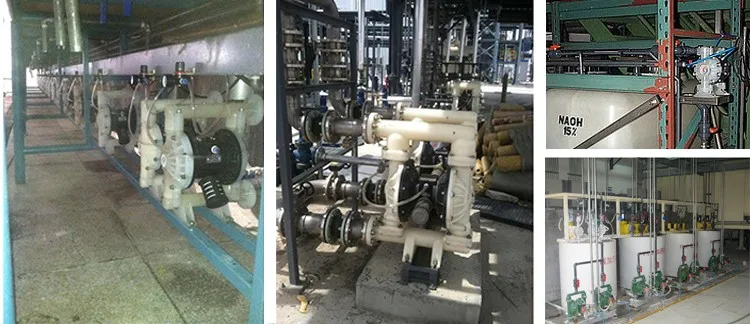

HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.




Pump, self-priming
HY AODD pumps are dry self-priming. Depending on the pump specification a suction lift of up to 8 m



Pump with positive suction
Depending on the pump type, the suction side inlet pressure may need to be limited to a max. pressure




Pump, submerged
HY AODD pumps can be totally submerged in the pumped medium. The exhaust outlet must remain above the fluid level.



Pump for drums
HY AODD pumps can be directly mounted on drums or containers.

Company Information



        Company Information



Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in Shanghai,China. HaoYang Air-Operated Double Diaphragm (AODD) pumps have earned industry recognition for premium quality and innovative design.  And we supply accessories and components suitable for most AODD pump installations.To ensure suitability for a variety of media, wetted parts are available in numerous optional materials.

Focus on customer satisfaction is supported with quality and reliability, validated by CE certifications.We specify only the most durable materials that are dependable and long-lasting. When we combine the highest-quality products with topnotch customer care, we get outstanding value.

HY have  attented China (Shanghai) International Architectural Coatings&Chemical Materials Expo and IE expo for several times, our product are highly recognized by customers



FAQ



        FAQ



 1. Q: Are you a factory or trading company?

     A: We are a factory.



  2. Q: What're your payments ?

      A: T/T,Western Union,L/C etc.



 3. Q: What about the package ?

     A: Standard export plywood case or carton.



 4. Q: How long is the warranty ?

      A: According to international standards, products in standard operation is 1 year,except wearable parts.



 5. Q: The use of products have?

      A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

          The pump can suck the paint, pigment, glue and adhesive etc.

          The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

          The pump can suck various toxin and flammable or volatility liquid etc.

          The pump can suck various strong acid, alkali and corrosive liquid etc.



 6. Q: How product quality and service?

      A: Our pump have CE certificate, quality assured, can accept OEM,  provide various personalized needs.
