Slurry Pump Mud Pump Air Double Diaphragm Pump

FOB Reference Price:Get Latest Price
$2,582.00 - $3,050.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Haoyang
Model Number:
HY80-SS
Structure:
Diaphragm Pump
Usage:
Chemical Coating Water treament etc.
Application:
Chemical , oil , Food , Acid and alkali
Power:
Pneumatic
Fuel:
air operated
Pressure:
Low Pressure
OEM:
Applicable
Certificate:
CE Certificate
Advantages:
Explosion-proof , zero leak , stall-free
Max head:
84m
Max suction lift:
Dry 5m ; wet 8m
Max flow rate:
1060L/min
Product name:
Slurry Pump Mud Pump Air Double Diaphragm Pump
Material:
Stainless Steel 304
Warranty:
1 Year
Type:
Diaphragm
Standard or Nonstandard:
Standard
Theory:
Diaphragm pump
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton packing with foam
Port
Shanghai
Lead Time :
Shipped in 7 days after payment
Detailed Images

Diaphragm Pump Parts


Name: Flange connection Outlet manifold

Brand: Haoyang

Original: China



Main Features

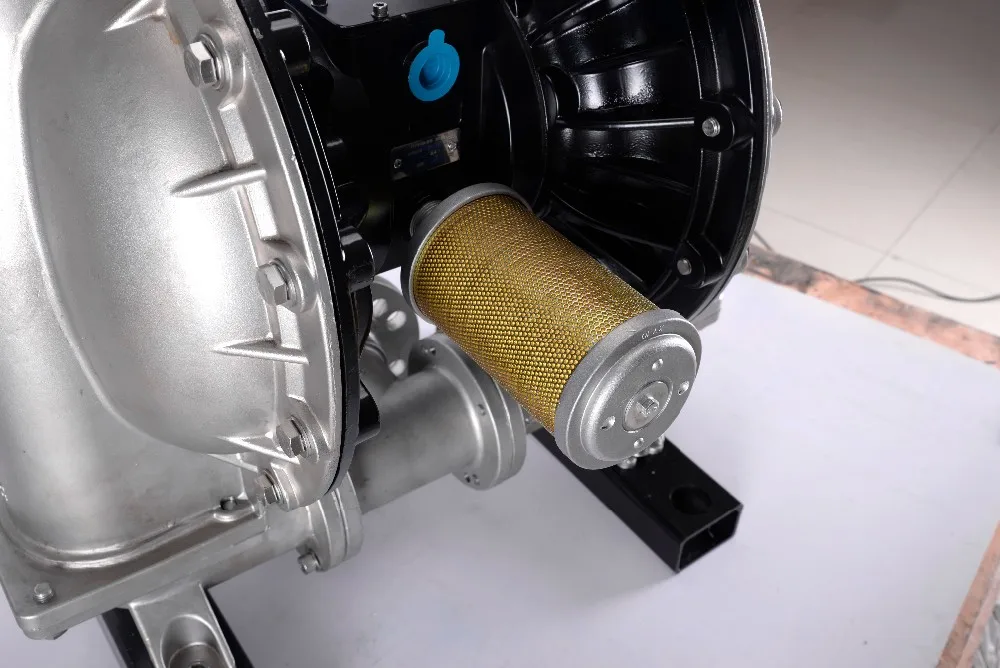

Name: Muffler(Metal)
Brand: FESTO
Original: China

Diaphragm Pump Parts


Name: Inlet mainflod
Brand: Haoyang
Original: China

Product Description

Pneumatic Diaphragm Pump Features:
The HY diaphragm pumps are CE ,ISO ,ATEX certified .
Pump body is stainless steel ,diversity of materials are available.
Bolt joint design provides even sealing pressure for optimal performance.
Diaphragm,ball and ball seat adopt imported materials with longer service life.
Due to their pneumatic motor, they could be used in potentially explosive areas.
Diversity of material,no rotating parts,applicable to various erosive situations.
Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

Main Features

1) Providing stall-free, ice-free operation

2) Idling ,self-priming ,submerse capability.

3) Offering the ability to vary the flow outlet and discharge pressure

Installation

HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.

Application

HY AODD Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.

Our Company

 Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in Shanghai,China. HaoYang Air-Operated Double Diaphragm (AODD) pumps have earned industry recognition for premium quality and innovative design. And we supply accessories and components suitable for most AODD pump installations.To ensure suitability for a variety of media, wetted parts are available in numerous optional materials.

Related Products

               Diaphragm Pump

                  Camlock/Joint

                      Damper


Certifications
We have been passed CE&ATEX7ISO 9000 certification
FAQ

  1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.

3. Q: What about the package ?
A: Standard export plywood case or carton.

4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.


5. Q: The use of products have?
A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
The pump can suck the paint, pigment, glue and adhesive etc.
The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The pump can suck various toxin and flammable or volatility liquid etc.
The pump can suck various strong acid, alkali and corrosive liquid etc.


6. Q: How product quality and service?
A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
